I would like to introduce you to the Zigbee protocol. This technology has made noteworthy improvements within the realm of Internet of Things (IoT). Launched in the early 2000s, Zigbee was designed specifically for battery operated devices and offers a cost effective, reliable, low power solution for wireless communication between devices.

The Zigbee protocol stack consists of four primary layers:

• Physical layer
• Medium access control (MAC) layer
• Network layer (NWK)
• Application layer (APL)

The Physical and MAC layers are governed by IEEE 802.15.4, which handles the nuts and bolts of how devices physically send and receive signals. Zigbee then adds extra layers that help devices form networks and run applications. To keep everything safe, Zigbee automatically scrambles all messages with strong 128-bit symmetric encryption, so only the right devices can understand them.

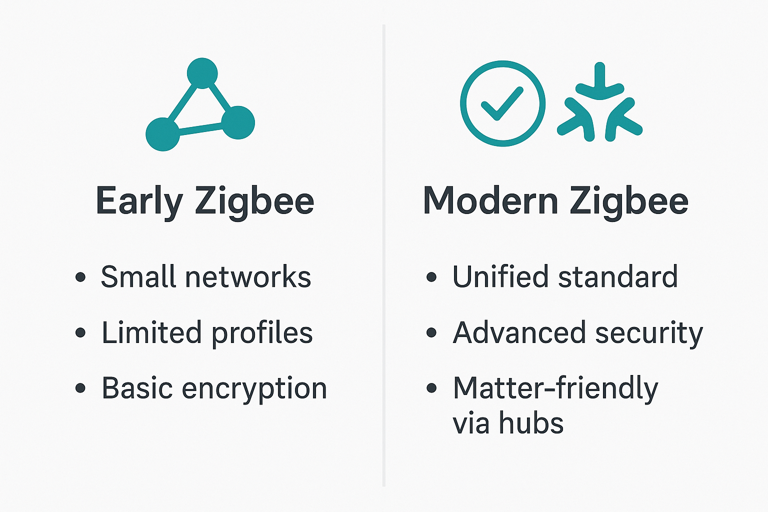

Evolution of Zigbee Technology

Since its inception, Zigbee has done a great job of keeping things up-to-date. Let’s go over some of its major developments over the years.

Year	What Happened?
2003	The Institute of Electrical and Electronics Engineers (IEEE) ratified the ZigBee stack’s operating specification, IEEE 802.15.4
2005	Zigbee 2004 specification (also known as Zigbee 1.0) was publicly released, marking the first complete version of the protocol stack that created a standardized way for low power wireless devices to communicate in personal area networks (PANs)
2006	The Zigbee 2006 version replaced the Zigbee 1.0 specification and also introduced cluster libraries
2007	Zigbee Pro (or Zigbee 2007) introduced significant improvements that allowed for larger and more reliable wireless networks, while maintaining backwards compatibility with older Zigbee devices
2014	Zigbee 3.0 came along with improved interoperability between Zigbee devices, sub-Ghz frequency support and a simplified Zigbee certification process for device manufacturers
2023	Zigbee Pro 2023 is the latest version, which includes advanced security features such as Dynamic Link Key and Device Interview

Applications of Zigbee

Zigbee plays a crucial role in numerous real world applications, particularly in Internet of Things (IoT) implementations. Here are some areas where this technology demonstrates its value:

• Home Automation
  • Smart lighting systems with advanced control capabilities
  • Integrated security solutions including surveillance cameras and electronic access controls
  • Automated temperature management through smart thermostat systems
• Industrial Controls
  • Machine monitoring and predictive maintenance
  • Optimizing and managing energy usage
  • Real-time asset tracking and inventory management
• Medical Data Collection
  • Remote patient monitoring with transmission of real-time health measurements (like heart rate and blood pressure) to healthcare providers
  • Wearable health and fitness monitoring devices
• Agriculture
  • Remote crop monitoring and management
  • Soil condition analysis and environmental monitoring
• Smart Cities
  • Intelligent street lighting and traffic management systems
  • Tracking and improving how cities use resources like water, electricity and gas

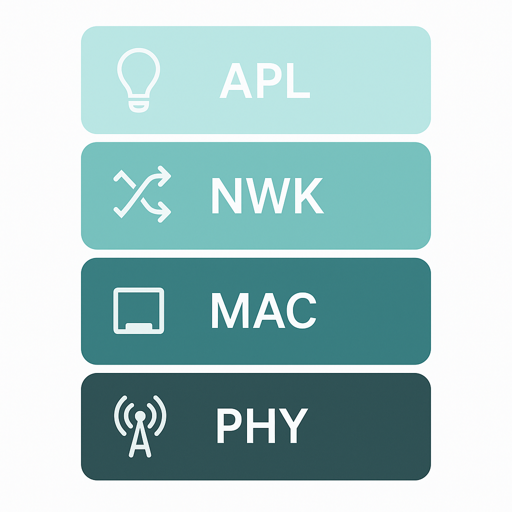

Zigbee Protocol Stack

As you’re aware by now, the Zigbee protocol stack is divided into four main layers – the Physical Layer (PHY), the Medium Access Control Layer (MAC), the Network Layer (NWK) and the Application Layer (APL). Each layer has specific responsibilities and interacts with adjacent layers to keep communication going.

Physical Layer (PHY)

The Physical Layer is where it all begins. This layer manages the actual transmission and reception of raw data. Based on the IEEE 802.15.4 standard (known for low-rate wireless personal area networks (LR-WPANs)), the PHY layer is responsible for the following:

• Sending and Receiving Data: Handles the basic task of transmitting data as radio waves, converting digital signals to radio frequency (RF) signals.
• Modulation and Demodulation: Uses Offset Quadrature Phase Shift Keying (O-QPSK), a type of modulation that’s both energy efficient and reliable in the 2.4 GHz band.
• Channel Access and Quality Check: Operates across 16 channels in the 2.4 GHz band, helping to reduce interference. This way, even in crowded spaces, Zigbee finds a clear lane for communication.

Medium Access Control Layer (MAC)

Next up is the MAC Layer, which keeps all the devices on the network from talking over one another. It works directly with the PHY layer and also follows IEEE 802.15.4 standards. Key roles of the MAC layer include:

• Data Framing: Divides data into structured frames that make it easier to manage and identify packets during transmission.
• Collision Avoidance: Uses a system called Carrier Sense Multiple Access/Collision Avoidance (CSMA/CA), so devices aren’t talking all at once. This keeps communications smooth and reduces packet loss.
• Security Basics: Adds a first layer of security, like encryption and integrity checks to protect the data it sends and receives.

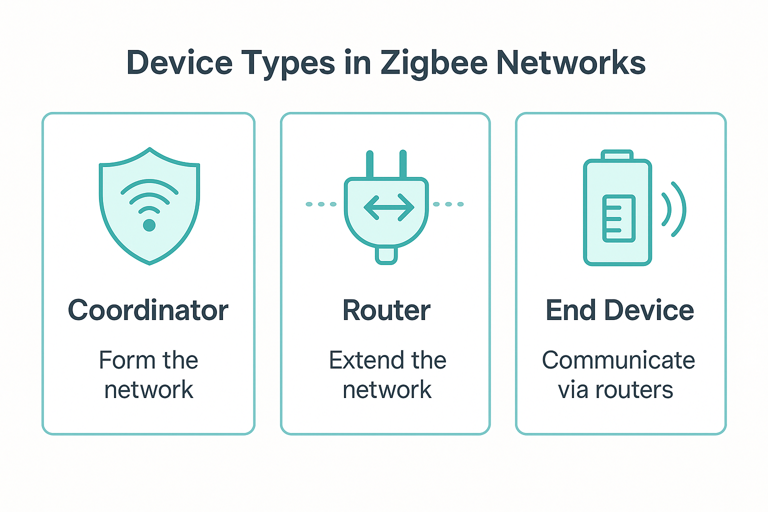

Network Layer (NWK)

Moving up a level, the Network Layer is where routing, addressing and general network organization come into play. This layer helps devices within a Zigbee network connect, organize and communicate seamlessly. Here’s how it does it:

• Network Formation: Allows devices to join, leave and move within the network easily, adjusting as needed.
• Address Assignment: Each device gets a unique network address, making it a doddle to identify and reach each node.
• Routing: Uses a mesh networking model, where data can hop from one device to another to reach its final destination, even if they’re not in direct range.

Application Layer (APL)

Finally, we have the Application Layer, the top layer where Zigbee really starts to come to life. This layer is where data from sensors and applications is actually put to use – turning on lights, adjusting thermostats or sending alerts. The APL layer includes three main components:

• Application Support Sub-Layer (APS): Provides services for data exchange between applications and devices within the Zigbee network, managing binding (or connecting) of devices that need to communicate.
• Zigbee Device Object (ZDO): Manages tasks like device discovery and network coordination, allowing new devices to join and communicate with the network.
• Application Framework: The heart of the Application Layer, defining application profiles (basically a set of instructions) that allow different devices to talk to each other, regardless of the manufacturer.

The Application Layer is where the real smarts of IoT devices come into play. Whether it’s controlling a smart thermostat, triggering a security alarm or adjusting lighting, the Application Layer makes these interactions possible and intuitive.

A Real Life Example of the Zigbee Protocol Stack

Imagine a Zigbee powered smart home setup, where a motion sensor in the hallway detects movement at night and the lights in the hallway turn on. Here’s how the Zigbee layers work together to make it happen:

• The Application Layer on the motion sensor sends a command to turn on the lights.
• The Network Layer uses Zigbee’s mesh network to find the best route to the light switch, possibly hopping through a few nearby devices.
• The MAC and PHY Layers handle the low level task of actually transmitting the message over the radio frequency, ensuring it gets to the light switch without interference.

Within moments, the hallway light turns on – all without you needing to touch a switch. This masterful approach to communication is what makes Zigbee such a popular choice for IoT.

Zigbee Network Considerations

Frequency Bands and Data Rates

Zigbee’s versatile protocol operates across multiple frequency bands globally, making it adaptable to different regional requirements and use cases. Each frequency band offers its own advantages.

Frequency Band	Geographic Area	Data Rate
868 MHz	EU Region	20 kbps
902-928 MHz	US Region	40 kbps
2.4 GHz	Global	250 kbps

The 2.4 GHz band, with its higher data rate of 250 kbps, serves as the primary choice for most applications. This bandwidth efficiently handles periodic data transmission and two-way communication between sensors and controllers, striking an optimal balance between power consumption and performance.

Network Range and Scalability

Zigbee’s range and scalability make it an ideal choice for larger IoT projects. Indoors, Zigbee covers a range of about 10 to 100 meters (33 to 328 feet), depending on building structure and other environmental factors. Outdoors, the range can extend up to a massive 300 meters (984 feet)!

Environment	Range
Indoors	10-100 meters
Outdoors	Up to 300 meters

Zigbee absolutely excels in scalability. With support for up to 65,000 nodes, Zigbee networks can accommodate even large, complex applications like industrial automation systems or smart city infrastructure, making it a flexible and resilient choice for extensive IoT networks.

Zigbee’s Notable Features

Let’s explore two powerful features that make Zigbee completely stand out in the world of wireless technology – Mesh Networking and Over-the-Air (OTA) Software Updates.

Mesh Networking

Zigbee is well-regarded for its unique mesh networking capability, which allows devices to communicate over extended distances by relaying data through multiple nodes. This approach not only increases the network’s range but also improves its reliability.

Here’s a simple table showing how Zigbee stacks up against Wi-Fi and Bluetooth in terms of network range and reliability.

Feature	Wi-Fi	Bluetooth	Zigbee
Node Communication	Direct, limited by range	Direct, limited by range	Multi-hop (up to 30 nodes)
Network Stability	Moderate	Moderate	High
Fault Tolerance	Low	Low	High

Allow me to elaborate on each of the features mentioned above:

• Node Communication: Zigbee supports multi-hop communication, meaning that data can pass through multiple devices (or nodes) within the network. This extends the overall range as each node can relay data to the next, unlike Wi-Fi and Bluetooth which are limited to direct, point-to-point connections.
• Network Stability: Zigbee’s mesh network maintains high stability due to the multi-hop structure. Even if a node goes offline, data can automatically be re-routed through other nodes, maintaining connectivity.
• Fault Tolerance: This setup makes Zigbee highly fault tolerant. Unlike Wi-Fi and Bluetooth, which have limited or no backup pathways, Zigbee networks can self-correct and reconfigure, making them ideal for smart home applications and industrial environments.

Over-the-Air Software Updates

Another cool feature of the Zigbee protocol is Over-the-Air (OTA) Software Updates. This provides the convenience of updating firmware without needing a physical connection to the device.

Advantages of OTA Updates in Zigbee Networks

• Efficiency: OTA updates streamline firmware upgrades, allowing them to happen over the network, which saves time and takes away the hassle of manual intervention.
• Enhanced Security: By ensuring that all devices in the Zigbee network are running the latest firmware, OTA updates help maintain a secure environment and protect against vulnerabilities.
• Scalability: OTA updates can make maintenance of large Zigbee networks easier by allowing updates to be pushed to multiple devices simultaneously.

Zigbee Security

Understanding the security framework of the Zigbee protocol is essential for anyone entering the IoT space. Zigbee’s sophisticated security architecture and key management protocols are designed to deliver strong protection for IoT networks.

Zigbee Security Architecture

Zigbee operates on an “open trust” model that supplements the security functions of IEEE 802.15.4. Central to this model is the Trust Center, which manages key distribution and configuration within the Zigbee network. Zigbee supports two primary security modes:

• Distributed Security Mode: Enables devices to manage keys independently, without relying on a central authority, making it ideal for mesh networks.
• Centralized Security Mode: A more secure option where the Trust Center oversees all key distribution, providing a central control point for enhanced network security.

The architecture leverages Counter with CBC-MAC (CCM*) encryption and 128-bit keys to secure data transmission. This implementation guarantees:

• Secure key exchange
• Message confidentiality
• Data integrity
• Device authentication

Key Management Mechanisms

Zigbee uses multiple key types to maintain network security:

• Network Key: A 128-bit key for broadcast communications shared by all devices in the network.
• Link Key: A unique 128-bit key for secure communication between specific device pairs, ensuring end-to-end privacy.

Zigbee’s key management approach includes a few important safeguards:

• Trust Center Key Distribution: The Trust Center handles the distribution of the network key and manages other security credentials to ensure devices join securely.
• Key Transport Mechanisms: Keys can be shared securely over-the-air, with Zigbee 3.0 offering additional safeguards like key randomization and support for custom installation keys.

To maintain security, Zigbee devices follow strict guidelines:

• Confidentiality: Protects the secrecy of network and link keys.
• Integrity: Ensures that messages aren’t tampered with in transit.
• Authentication: Confirms that new devices trying to join the network are legitimate.

Security Vulnerabilities

Zigbee’s security is solid, but as with any tech, there are potential vulnerabilities. Knowing what they are and how to address them can keep your network running smoothly and securely.

Key Storage Risks

One major security focus is keeping keys safe and sound. If a device’s keys aren’t securely stored, someone with physical access could extract them, potentially accessing the whole network.

Mitigation strategies include:

• Opt for Secure Storage: Choose devices with secure storage features like hardware based security.
• Update Keys Regularly: Change network and link keys periodically, so if one is compromised, it won’t be useful for very long.
• Physically Secure Devices: Especially in accessible areas, keep devices protected to avoid tampering.

Over-the-Air Key Distribution Risks

Zigbee allows keys to be sent over-the-air to streamline setup. However, if these transmissions aren’t secure, there’s a risk of interception, especially with older devices.

Mitigation strategies include:

• Upgrade to Zigbee 3.0: This version includes enhanced security, like randomization and custom installation keys.
• Encrypt Key Transfers: Make sure keys are encrypted during transmission.
• Use Controlled Onboarding: Onboard devices in a secure environment to minimize risks during setup.

Default or Weak Keys

Some Zigbee devices might come with default or weak keys, creating easy entry points for attackers familiar with standard configurations.

Mitigation strategies include:

• Change Default Keys: Set unique, strong keys during setup.
• Rotate Keys Regularly: Refresh keys periodically to keep the network secure.
• Use Strong Keys: Choose complex, randomized keys for better protection.

Device Spoofing and Unauthorized Access

Since Zigbee runs on open wireless frequencies, attackers may try to impersonate legitimate devices to gain access.

Mitigation strategies include:

• Use Device Authentication: Verify every device attempting to join.
• Enable Trust Center Control: Centralized security helps the Trust Center oversee and control device access.
• Monitor for Unusual Activity: Set up alerts for unexpected behavior to catch possible spoofing.

Firmware Vulnerabilities

Firmware vulnerabilities can open doors to bypass security. Outdated or insecure firmware is a risk, especially if a vulnerability becomes widely known.

Mitigation strategies include:

• Stay Updated: Regularly update firmware from trusted sources.
• Choose Reputable Brands: Look for manufacturers that prioritize security updates.
• Enable Firmware Validation: Ensure only trusted firmware is installed on devices.

Jamming and Denial of Service (DoS) Risks

Operating on limited radio frequencies, Zigbee networks can be susceptible to jamming attacks that disrupt communication. While it doesn’t expose data, it can still impact network function.

Mitigation strategies include:

• Use Less Crowded Channels: Choose frequencies with less interference.
• Monitor Signal Strength: Watch for unusual drops that might indicate jamming.
• Segment Your Network: Creating isolated sections can limit the impact of any disruptions.

Zigbee: The Little Protocol That Could

So, what can we say about Zigbee? One thing’s for sure – this low power, low cost protocol has proven itself to be the bee’s knees when it comes to creating reliable mesh networks for smart home and IoT applications. While it may not grab headlines like Wi-Fi or 5G, Zigbee’s ability to connect up to 65,000 devices in a single network means it’s creating quite a buzz in the automation world.

Whether you’re looking to automate your home or implement industrial IoT solutions, Zigbee’s combination of security, reliability and energy efficiency makes it a honey of a choice. As we continue to build our connected future, this little protocol is proving that sometimes the best things come in small (data) packages. So the next time your smart thermostat adjusts perfectly or your security sensors work seamlessly together, remember to thank this humble but mighty protocol keeping your smart world humming along.
