IoT Communication Protocols: A Complete Guide

You deploy a sensor that’s supposed to last five years on a battery. Six months later, it’s dead. What went wrong? More often than not, it’s the communication protocol that drained it, not a faulty battery.

In the world of connected devices, communication protocols determine how efficiently, securely and reliably your IoT deployment performs. From smart thermostats to industrial sensors, these protocols shape device performance. This guide explores the leading protocols, their real world trade-offs and how to pick the right one for your needs.

Understanding IoT Communication Protocols

IoT protocols operate at different layers of the communication stack and understanding this matters more than you’d think.

• Application Layer Protocols (MQTT, CoAP, HTTP) handle how applications exchange data.
• Network Layer Protocols (IPv4, IPv6) manage routing and addressing.
• Physical/Data Link Protocols (Zigbee, Bluetooth, Z-Wave, Thread) control actual data transmission over wireless or wired connections.

Application Layer Protocols

These protocols manage how applications exchange data and coordinate actions. Getting this choice right has a major architectural impact on battery life and responsiveness.

HTTP/HTTPS (Hypertext Transfer Protocol)

While not designed specifically for IoT, HTTP remains widely used, and there’s nothing wrong with that if you understand the trade-offs. Its ubiquity means every developer knows it, every platform supports it and troubleshooting is straightforward.

Strengths: Universal compatibility with extensive tooling and libraries. Strong security with HTTPS/TLS. Easy cloud service integration. HTTP with WebSockets enables server push for near real-time communication. MQTT over WebSockets is common where firewall ports are restricted.

Limitations: Higher overhead compared to IoT-specific protocols with increased power consumption. Request-response model less efficient for continuous monitoring. Not ideal for battery powered devices.

Best For: IoT devices with a constant power supply, cloud connectivity for data aggregation, devices requiring strong authentication, scenarios where battery life isn’t critical.

MQTT (Message Queuing Telemetry Transport)

MQTT has become the de facto standard for IoT messaging – and for good reason. Originally developed by IBM in 1999 for monitoring oil pipelines in remote locations, it’s proven itself in challenging scenarios. It uses a publish-subscribe model with a central message broker. Devices publish messages to specific topics while others subscribe to topics of interest. Think of it like a radio station. One broadcasts, others tune in to listen.

Strengths: Extremely lightweight and ideal for constrained devices. Bi-directional communication with efficient bandwidth usage. Extensive library support across programming languages with strong community backing.

Limitations: Requires central broker infrastructure, creating a potential single point of failure and adding complexity. Not ideal for hard real-time, deterministic latency requirements. Security depends on configuration – typically TLS transport plus broker side authentication and ACLs.

Best For: Home automation, remote monitoring, industrial IoT with thousands of sensors, mobile applications with unreliable connectivity, smart city infrastructure.

CoAP (Constrained Application Protocol)

Developed by the Internet Engineering Task Force (IETF), CoAP is essentially a lightweight version of HTTP designed for resource constrained devices. It follows a client-server model but uses UDP instead of TCP for reduced overhead. CoAP adds reliability through Confirmable (CON) messages requiring acknowledgments, while Non-Confirmable (NON) messages trade reliability for lower overhead.

Strengths: Very low power consumption with efficient bandwidth usage and small packet sizes. Easy integration with HTTP/REST ecosystems. Multicast capability for group operations with built-in resource discovery.

Limitations: UDP means no guaranteed delivery without additional confirmation. Less mature ecosystem compared to MQTT with smaller adoption of servers, proxies and tooling.

Best For: Battery operated sensors in smart buildings, mesh networks with many small devices, smart city applications requiring multicast, integration with existing web infrastructure.

DDS (Data Distribution Service)

DDS is the protocol you’ve probably never heard of but rely on daily. It’s running air traffic control systems, military communications and autonomous vehicles. Developed by the Object Management Group (OMG) in 2004, it’s designed for scenarios where “good enough” simply isn’t an option.

Strengths: Exceptional real-time performance with highly reliable, configurable QoS. No single point of failure (broker-less architecture). Excellent for mission critical systems with strong data typing to prevent errors. Capable of millisecond or even sub-millisecond latency in well engineered environments.

Limitations: Complex to configure and implement with higher resource requirements. Enterprise features often require commercial licensing (though open source implementations exist). Overkill for simple applications.

Best For: Autonomous vehicles, military and defense systems, air traffic control, industrial automation requiring millisecond or sub-millisecond response (often alongside OPC UA for device level interoperability), healthcare monitoring equipment.

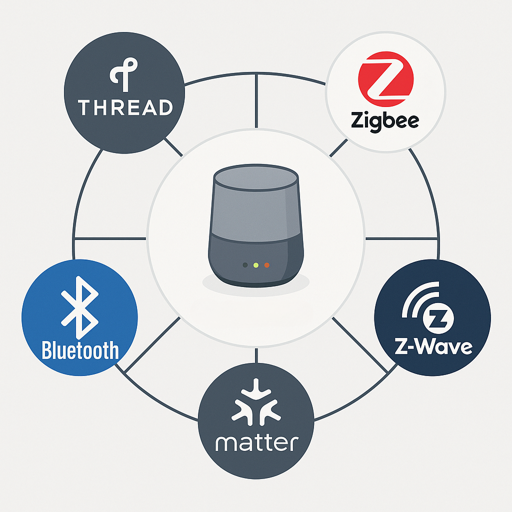

Matter

Matter is an application layer standard that runs over Thread/Wi-Fi/Ethernet, providing cross-ecosystem interoperability (Apple/Google/Amazon) with unified commissioning and end-to-end encryption. Launched in late 2022 by the Connectivity Standards Alliance, it’s honestly the most significant development in smart home protocols in years, finally addressing the fragmentation that’s plagued the industry. Thread based Matter devices require a Thread Border Router, often built into devices you might already own like newer Amazon Echos, Google Nest speakers or Apple HomePods.

Strengths: Universal compatibility across major ecosystems with mandatory encryption. Built on proven protocols (primarily Thread, also Wi-Fi). Local control reduces cloud dependency and latency. Future proof with backing from major tech companies. Simplified setup with unified commissioning.

Limitations: Still maturing, though device availability is growing rapidly. Existing devices require firmware updates, if supported. Thread devices require Thread Border Router infrastructure. Early adoption phase may have interoperability quirks.

Best For: New smart home deployments, multi-ecosystem households (Apple + Google + Amazon), privacy conscious installations preferring local control, future proof home automation investments.

Network and Physical Layer Protocols

While application protocols handle the “what” of communication, these protocols handle the “how”, the actual transmission of data. Here’s the key distinction – short range protocols prioritize low power and mesh reliability for localized networks, while long range protocols sacrifice data rate for coverage spanning kilometers.

Short Range Protocols

Short range protocols excel in localized environments like homes, offices and industrial facilities, usually operating within 100 meters.

Thread

Thread is an IPv6 based mesh networking protocol built on IEEE 802.15.4, similar to Zigbee but designed specifically for IP connectivity. It’s become the critical foundation for Matter enabled smart home devices. Thread devices form mesh networks but require a Thread Border Router (often built into newer hubs like Amazon Echo, Google Nest, Apple HomePod/Apple TV) to connect to IP networks and the Internet.

Strengths: Native IPv6 support enables clean IP integration and Internet connectivity via a Thread Border Router. Self-healing mesh network for reliability with low power consumption ideal for battery devices. Strong security with end-to-end encryption. Foundation protocol for Matter smart home standard with no single point of failure within the mesh.

Limitations: Requires Thread Border Router for Internet connectivity. 2.4 GHz band susceptible to Wi-Fi interference. Relatively new ecosystem compared to Zigbee with lower data rates than Wi-Fi.

Best For: Matter enabled smart home devices, battery powered sensors and switches, home automation requiring IP connectivity, devices needing secure mesh networking.

Bluetooth and Bluetooth Low Energy (BLE)

This familiar protocol has come a long way since the clunky wireless headsets of the late 1990s. Bluetooth Low Energy (BLE), introduced with Bluetooth 4.0 in 2010, redefined IoT applications with drastically reduced power consumption, enabling years-long battery life for fitness trackers, sensors and wearables.

What makes BLE particularly compelling for IoT is its universal smartphone support and simple pairing process. No gateway required, no network configuration. Users just pair directly with their devices. Modern Bluetooth 5.0+ extends range to 100+ meters in ideal conditions and doubles data throughput to 2 Mbps, while Bluetooth Mesh, standardized in 2017, enables building-scale lighting and control systems.

Strengths: Universal device support (phones, tablets, computers) with excellent power efficiency. Simple pairing process with no gateway required for smartphone connectivity. Extended range and higher throughput in Bluetooth 5.0+. Proximity based security benefits from limited range.

Limitations: Limited range compared to other protocols without range extenders. 2.4 GHz interference potential from Wi-Fi and other devices. Star topology limits scalability in non-mesh implementations with connection limitations per device. No direct Internet connectivity without a gateway.

Best For: Wearable devices and fitness trackers, proximity based applications (beacons), smartphone controlled devices, personal area networks, healthcare monitors, building automation (with Bluetooth Mesh).

Zigbee

Zigbee is a low power, mesh networking protocol operating on the IEEE 802.15.4 standard, ideal for short range communication between numerous devices.

Strengths: Very low power consumption with battery life measured in years. Self-healing mesh network provides reliability with large network capacity. Strong security with AES-128 encryption. Mature ecosystem with many certified products.

Limitations: Lower data rates unsuitable for video or large file transfers. 2.4 GHz band can experience Wi-Fi interference requiring careful channel planning. Mesh networks can introduce latency. Requires gateway for Internet connectivity.

Best For: Smart home devices (lights, locks, sensors), building automation systems, industrial monitoring with many sensors, healthcare monitoring devices, smart meter networks.

Z-Wave

This proprietary wireless protocol was specifically designed for home automation, operating on sub-GHz frequencies to avoid interference. Z-Wave Long Range (Z-Wave LR), introduced more recently, significantly expands capabilities with support for approximately 4,000 nodes and extended range.

Strengths: Less interference due to sub-GHz operation with strong interoperability standards. Reliable mesh networking with lower latency than Zigbee.

Limitations: Proprietary standard with licensing costs and smaller ecosystem than Zigbee. Regional frequency variations limit device portability. Classic Z-Wave limited to 232 nodes (though Z-Wave LR addresses this).

Best For: Residential home automation, smart locks and security systems, lighting control, HVAC systems, water leak detection, large properties or communities (Z-Wave LR).

Long Range Protocols

LoRaWAN

LoRaWAN provides long range, low power communication ideal for IoT applications spanning large geographic areas.

Strengths: Exceptional range with low power and deep indoor penetration. Cost effective for widespread deployments using unlicensed spectrum with simple network architecture.

Limitations: Very low data rates unsuitable for real-time applications. Limited message frequency due to duty cycle restrictions (stricter in EU sub-GHz bands, US deployments face different regulatory constraints). Requires gateway infrastructure.

Best For: Agricultural monitoring, smart city sensors (parking, waste management), utility meter reading, environmental monitoring, asset tracking over large areas.

Cellular IoT (NB-IoT and LTE-M)

Cellular protocols leverage existing mobile network infrastructure for wide area IoT connectivity. NB-IoT and LTE-M serve different purposes based on mobility, bandwidth and latency requirements.

NB-IoT Best For: Smart meters that report usage once per day and aim for 10+ years of battery life (water, gas, electricity), environmental sensors, smart parking, waste management sensors, agriculture monitoring.

LTE-M Best For: Connected vehicles, asset tracking and logistics, wearable health devices, point-of-sale terminals, smart city infrastructure requiring mobility.

Choosing the Right IoT Communication Protocols

Here’s where theory meets reality. The “best” protocol doesn’t really exist. What matters is the best protocol for your specific needs. I’ve seen brilliant engineers overthink this decision, and I’ve seen others nail it by simply matching their constraints to protocol strengths.

IoT Communication Protocols Compared by Use Case

The Last Hop

Choosing the right IoT protocol shapes everything – how long your devices last, how reliably they communicate and how easily your system scales. It’s one of those decisions that seems purely technical but has real consequences you’ll live with for years.

The great thing is you don’t need to master every protocol. Focus on your specific needs, like battery life, coverage area or data requirements, and the right choice becomes clear as day. The protocols we’ve covered power millions of devices worldwide, from smart homes to industrial facilities.

What’s exciting is where things are headed. Matter is finally bringing different smart home ecosystems together. Thread and cellular IoT are making reliable connectivity possible in places that were previously a challenge. The technology keeps improving while getting easier to use.

Whether you’re setting up your first smart home (we have a guide for that here) or managing an industrial deployment, start with your requirements and pick the protocol that actually fits. Don’t overthink it. The best choice is one that works for your circumstances and gets you up and running.

Now go build something that lasts longer than six months.
